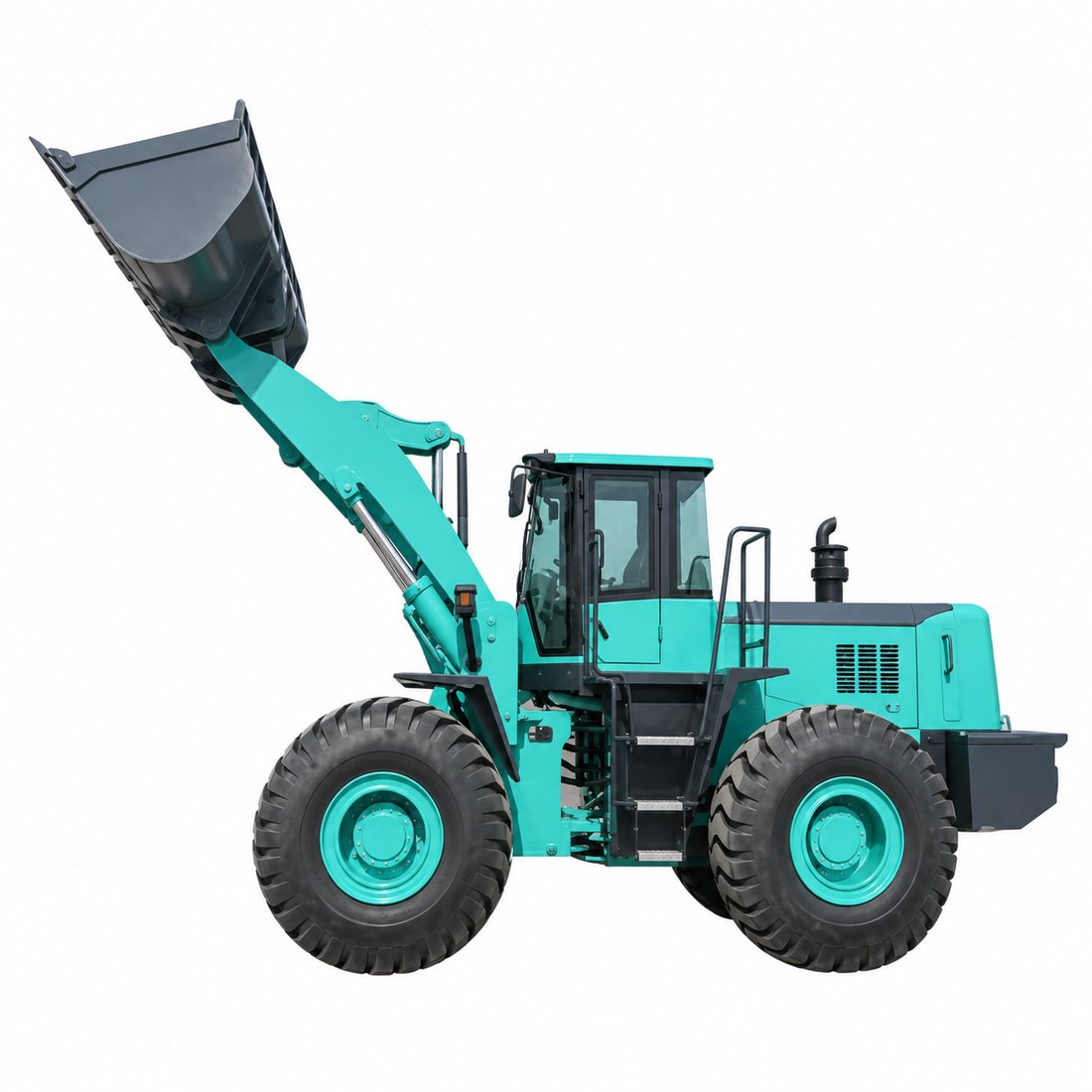

Construction 1.7m3 Wheel Loaders
A Construction 1.7m3 Wheel Loaders uses a front-mounted bucket on a hydraulic lift arm to scoop, carry and dump loose material such as aggregate, soil or demolition debris, and can also load trucks and hoppers directly. It is used on construction, quarry and material-handling sites for stockpile work and truck loading. Its articulated steering lets the whole front and rear frame pivot for a tight turning radius despite a large bucket at the front. For tender or institutional supply, share the technical spec and delivery date from your award and we'll confirm certification paperwork and a matching production schedule.
- Outomatisering & beheer: Hydraulic loader arm, operator cab controlled
- Konstruksie: Steel bucket with hardened cutting edge
- Drywing / meganisme: Diesel engine, articulated steering, hydraulic lift arm
- Tipiese kapasiteit: 1.7-6.5 m³ bucket capacity, 3-12 tonne rated operating load
| Kategorie | Konstruksiemasjinerie & -toerusting |
| Subkategorie | Wheel Loader |
| Vlak van Outomatisering | Hydraulic loader arm, operator cab controlled * |
| Drywing / Meganisme | Diesel engine, articulated steering, hydraulic lift arm * |
| Boumateriaal | Steel bucket with hardened cutting edge * |
| Kapasiteit / Grootte | 1.7-6.5 m³ bucket capacity, 3-12 tonne rated operating load * |
| Loading Bucket | 1.7 m3 |
| Rated Loading | 3 ton |
| Engine Power | 92 kw |
| Operating Weight | 10500 kgs |
| Overall weight | 10500kg |
| Bucket capacity | 1.7m3 |
| Maximum grade ability | 30℃ |
| Maximum dump height | 3150mm |
| Maximum dump reach | 1200mm |
| Engine model | Weichai-Deutz WP6G125E22 |
| Engine Rated power | 92kw / 2200r/min |
| Gearbox mode | power shift |
| Gears | 2 forward, 1 reverse |
| Maximum speed | 40km/h |
| Beskikbaarheid | In voorraad / Op bestelling vervaardig |
| Uitvoerverpakking | Seewaardige uitvoerverpakking beskikbaar |
| Waarborg | Volgens vervaardiger se voorwaardes — bevestig by navraag |
* Tipiese waarde vir hierdie tipe toerusting, nie 'n presiese datablad-syfer vir een spesifieke eenheid nie — bevestig die presiese spesifikasie vir u bestelling by navraag.
Vergelyk
Hoe dit vergelyk met soortgelyke Konstruksiemasjinerie & -toerusting-produkte
| Model | Outomatisering / Drywing | Materiaal | Kapasiteit |
|---|---|---|---|
| Construction 1.7m3 Wheel Loaders (hierdie bladsy) | Hydraulic loader arm, operator cab controlled | Steel bucket with hardened cutting edge | 1.7-6.5 m³ bucket capacity, 3-12 tonne rated operating load |

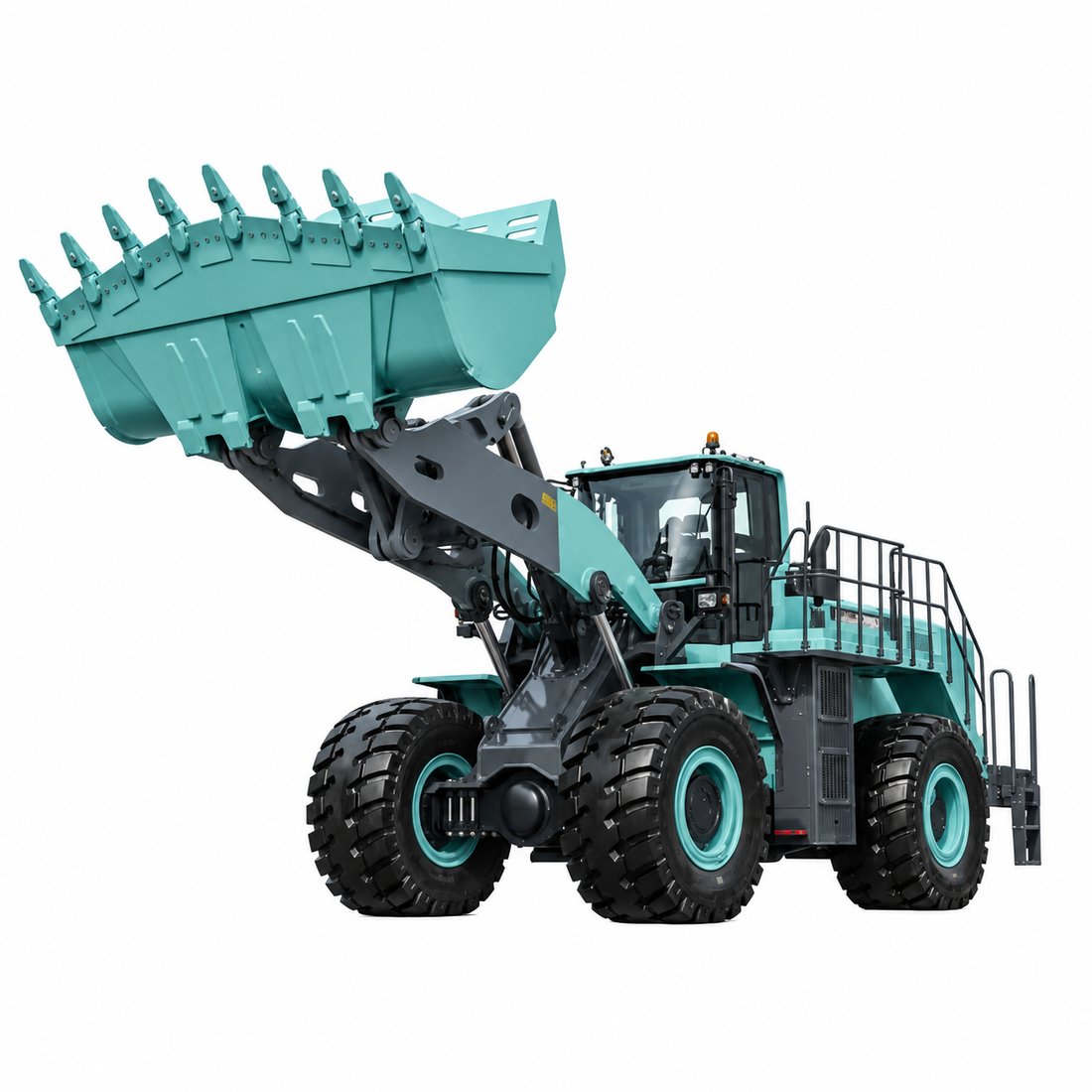

| Construction 12 Ton 6.5m3 BUCKET Largest Wheel Loader | Hydraulic loader arm, operator cab controlled | Steel bucket with hardened cutting edge | 12 ton |

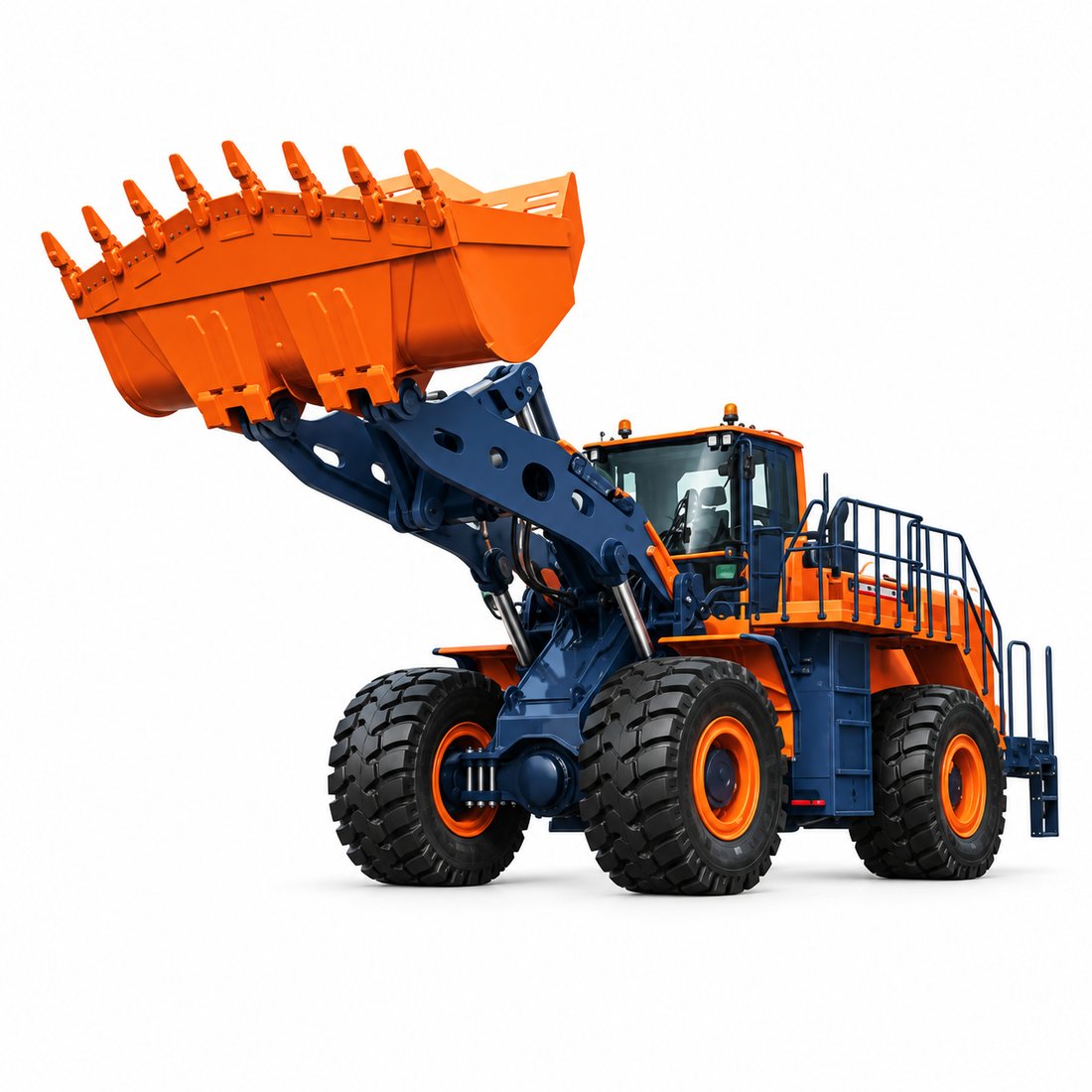

| Construction 12 Ton Wheel Loaders | Hydraulic loader arm, operator cab controlled | Steel bucket with hardened cutting edge | 12 ton |

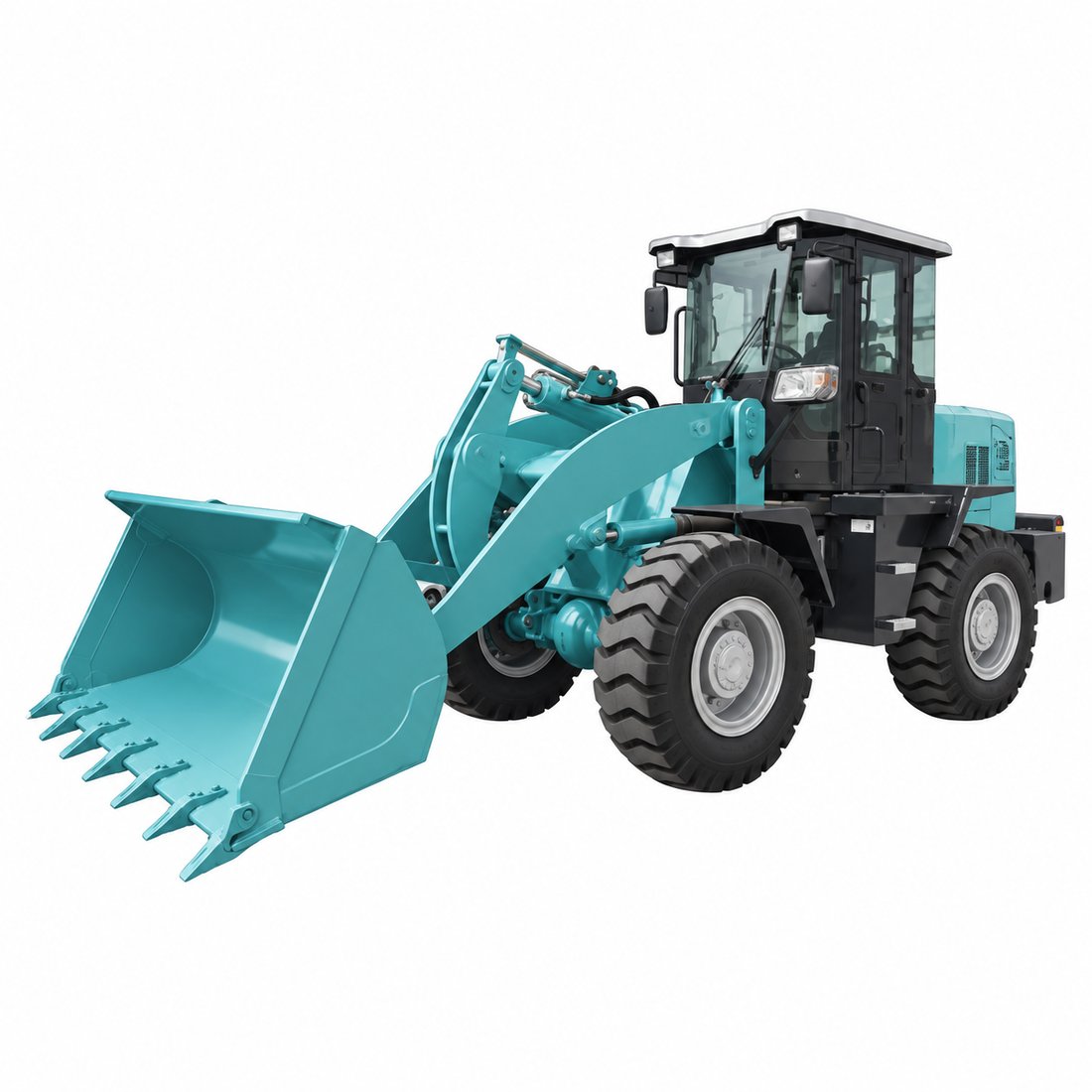

| Construction 3 Ton 1.7m3 BUCKET Wheel Loader | Hydraulic loader arm, operator cab controlled | Steel bucket with hardened cutting edge | 3 ton |
U mag ook nodig hê
Verwante produkte
Koperkwessies
Vrae oor die Construction 1.7m3 Wheel Loaders
Ja — kapasiteit, kragspesifikasie en bykomstighede vir die Construction 1.7m3 Wheel Loaders kan gewoonlik volgens u behoefte gekonfigureer word. Deel u teikenuitset en bestemmingsland wanneer u navraag doen.
Uitvoerbestellings word verskaf met seewaardige verpakking, versendingsdokumentasie en, waar van toepassing, 'n bedieningshandleiding. Installasie- en na-verkoopsvoorwaardes word tydens bestelling bevestig.
Ons versend tans toerusting in hierdie reeks na 67+ lande regoor Afrika, Asië, die Midde-Ooste en Latyns-Amerika — laat weet ons u bestemming wanneer u navraag doen.
Yes — the Construction 1.7m3 Wheel Loaders is regularly supplied against government, municipal and institutional tenders. Share the tender's technical specification, required quantity and delivery date, and we'll confirm compliance paperwork and a dispatch schedule that meets your submission deadline.
