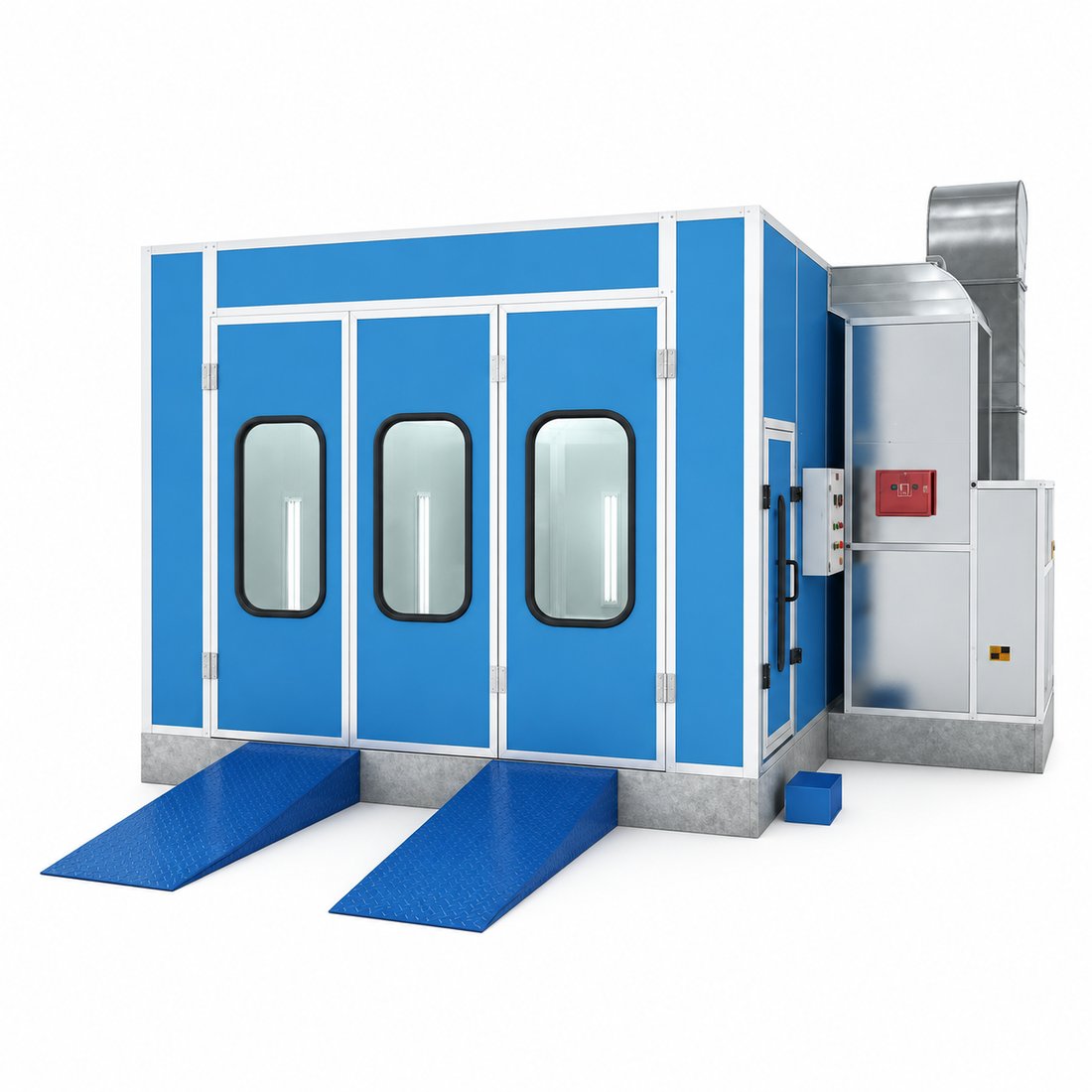

Garage Workshop Spray Paint Booth
A Garage Workshop Spray Paint Booth is a sealed, filtered enclosure that keeps dust out and overspray contained while a vehicle is being spray-painted, giving a clean, even finish. Controlled airflow and, in bake booths, heated curing cycles speed up paint drying. It is essential equipment for any body shop offering refinishing work. Sọ ìwọ̀n iṣẹ́jáde rẹ àti orílẹ̀-èdè ìrànsẹ́ fún wa, a óò sì jẹ́rìí ìbámu, àkókò àti ìdíyelé gbóńgbó òkèèrè.
- Adaṣiṣẹ́ àti ìdarí: Automatic airflow, filtration and temperature control
- Ohun Èlò Ìkọ́: Insulated steel panel walls, filtered ceiling plenum, sealed floor
- Agbára / Ẹ̀rọ Ìdarí: Ducted fans draw air through intake and exhaust filters to control overspray
- Agbára tó wọ́pọ̀: Fits one full-size vehicle, 20,000-40,000 m³/hr airflow
| Ẹ̀ka | Ohun Èlò Gáréèjì àti Ilé-iṣẹ́ Àtúnṣe |
| Ẹ̀ka-abẹ́lẹ̀ | General |
| Ìpele Adaṣiṣẹ́ | Automatic airflow, filtration and temperature control * |
| Agbára / Ẹ̀rọ Ìdarí | Ducted fans draw air through intake and exhaust filters to control overspray * |
| Ohun Èlò Ìkọ́ | Insulated steel panel walls, filtered ceiling plenum, sealed floor * |
| Agbára / Ìwọ̀n | Fits one full-size vehicle, 20,000-40,000 m³/hr airflow * |
| Air Flow | Vertical down Draft |
| Heat Output Full Load | 1,00,000 K.Cal/hr |
| Fuel | HSD |
| Working Size of the Booth | L7500xW3950xH2600 mm |
| External Size of the Booth | L7603xW4050xH3500 mm |
| Air Inlet Blower | 22,000 m3/hr |
| Motor | 7.5 HP |
| Speed | 1440 rpm |
| Phase | 3 Phase |
| Voltage | 415V |
| Heat Exchanger | Stainless Steel |
| Wíwà Fún Rírà | Ó wà lọ́wọ́ / A ń ṣe é gẹ́gẹ́ bí ìbéèrè |
| Ìṣàkó Fún Gbóńgbó Òkèèrè | Ìṣàkó tó bá ọkọ̀ ojú omi mu wà |
| Ìdánilójú (Warranty) | Gẹ́gẹ́ bí àwọn òfin aṣelọ́pọ̀ — jẹ́rìí síi nígbà ìbéèrè |
* Iye tó wọ́pọ̀ fún irú ẹ̀rọ yìí, kì í ṣe iye pàtó láti inú ìwé-ẹ̀rọ ẹ̀yọ kan pàtó — jẹ́rìí àlàyé pàtó fún ọjà rẹ nígbà ìbéèrè.
Fiwéra
Bí èyí ṣe fiwéra sí àwọn ọjà Ohun Èlò Gáréèjì àti Ilé-iṣẹ́ Àtúnṣe tó jọra
| Ìrísí Ẹ̀rọ | Adaṣiṣẹ́ / Agbára | Ohun Èlò | Agbára |
|---|---|---|---|
| Garage Workshop Spray Paint Booth (ojú-ìwé yìí) | Automatic airflow, filtration and temperature control | Insulated steel panel walls, filtered ceiling plenum, sealed floor | Fits one full-size vehicle, 20,000-40,000 m³/hr airflow |
| Garage Workshop Air Compressor | Automatic pressure-switch start/stop | Steel receiver tank, cast-iron pump, powder-coated frame | 2-10 HP, 100-500 litre tank, 8-12 bar working pressure |
| Garage Workshop Digital Air Inflators | Automatic digital pressure set-and-cut-off | Steel/ABS console, reinforced air hose, digital display | 0-12 bar (0-174 psi) digital pressure setting |
| Garage Workshop Gas Analyzer | Automatic gas sampling with digital/printed readout | Metal instrument casing, flexible sampling hose and probe | Measures 4-5 exhaust gases (CO, HC, CO2, O2, NOx) |
Ó lè wù ọ́ pẹ̀lú
Àwọn Ọjà Tó Jọra
Garage Workshop Air Compressor
Wo àlàyé kíkún →
Garage Workshop Digital Air Inflators
Wo àlàyé kíkún →
Garage Workshop Gas Analyzer
Wo àlàyé kíkún →
Garage Workshop Gscan Car Diagnosis Equipment
Wo àlàyé kíkún →Ìbéèrè Onífẹ̀ẹ́
Àwọn ìbéèrè nípa Garage Workshop Spray Paint Booth
Bẹ́ẹ̀ni — agbára, àlàyé agbára àti àwọn ohun ìjámọ́ra fún Garage Workshop Spray Paint Booth sábà máa ń ṣeé ṣe àtúnṣe gẹ́gẹ́ bí ohun tí o nílò. Sọ ìwọ̀n iṣẹ́jáde rẹ àti orílẹ̀-èdè ìrànsẹ́ nígbà tí o bá ń béèrè.
Gbogbo ẹrù tí a rán fún gbóńgbó òkèèrè ni a máa ń kó dáradára láti dojúkọ ìrìnnà, a sì máa ń fi àwọn ìwé tí a nílò kún; ìwé ìtọ́sọ́nà olùṣiṣẹ́ wà níbi tó bá yẹ. A máa ń jẹ́rìí ìtìlẹ́yìn ìfòsíwájú nígbà tí a bá ń gba ọjà.
Ìrànsẹ́ gbóńgbó òkèèrè fún ẹ̀ka yìí dé orílẹ̀-èdè tó ju 67 lọ ní Áfíríkà, Éṣíà, Ìlà Oòrùn Àárín Gbùngbùn àti Látìn Amẹ́ríkà; sọ èbúté ìrànsẹ́ rẹ fún wa fún ìṣírò owó ọkọ̀.
Yes — the Garage Workshop Spray Paint Booth is regularly supplied against government, municipal and institutional tenders. Share the tender's technical specification, required quantity and delivery date, and we'll confirm compliance paperwork and a dispatch schedule that meets your submission deadline.
