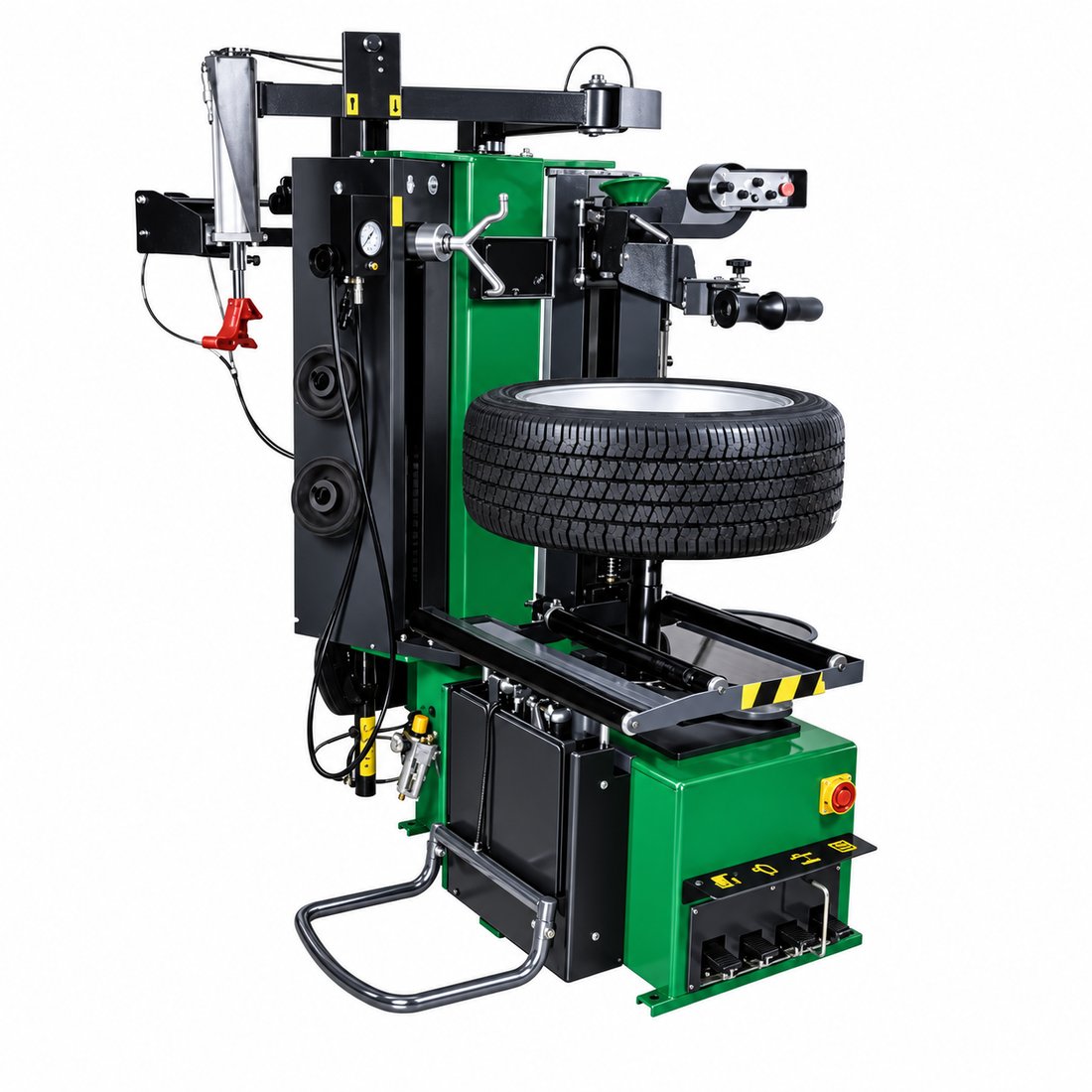

Garage Tyre Changer
A Garage Tyre Changer mounts and demounts tyres from wheel rims without damaging the rim or tyre bead, using a rotating turntable and bead-breaker arm. It's a core piece of workshop equipment for tyre service bays handling passenger and light-commercial vehicles. Winning bidders sourcing this for a tender can send us the award's specification and deadline for a matched configuration, compliance documentation and confirmed dispatch date.
- Outomatisering & beheer: Semi-automatic, pedal-operated clamp
- Konstruksie: Steel frame, cast clamp jaws
- Drywing / meganisme: Electric motor with pneumatic assist
- Tipiese kapasiteit: 10-24 inch wheel rim diameter
| Kategorie | Garage- & Werkswinkeltoerusting |
| Subkategorie | Garage Tyre Care Equipments |
| Vlak van Outomatisering | Semi-automatic, pedal-operated clamp * |
| Drywing / Meganisme | Electric motor with pneumatic assist * |
| Boumateriaal | Steel frame, cast clamp jaws * |
| Kapasiteit / Grootte | 10-24 inch wheel rim diameter * |
| Tyre Diameter | 1150 mm |
| Clamping Capacity | 12''-24'' |
| Motor Power | 0.9/1.1 kw |
| Motor Rotation | 1400/2800 r/min |
| Working oil Pressure | 8-12 Mpa |
| Working air Pressure | 0.7-0.8 Mpa |
| Bead Blast Pressure | 0.6-0.7 Mpa |
| Turntable speed | 6.8/13.6 rpm |
| Bead Breaker force | 2500 kg |
| Swing arm radius | 600 mm |
| Weight | 400 kg |
| Shaft longitidinal | 285 mm |
| Beskikbaarheid | In voorraad / Op bestelling vervaardig |
| Uitvoerverpakking | Seewaardige uitvoerverpakking beskikbaar |
| Waarborg | Volgens vervaardiger se voorwaardes — bevestig by navraag |
* Tipiese waarde vir hierdie tipe toerusting, nie 'n presiese datablad-syfer vir een spesifieke eenheid nie — bevestig die presiese spesifikasie vir u bestelling by navraag.
Vergelyk
Hoe dit vergelyk met soortgelyke Garage- & Werkswinkeltoerusting-produkte
| Model | Outomatisering / Drywing | Materiaal | Kapasiteit |
|---|---|---|---|
| Garage Tyre Changer (hierdie bladsy) | Semi-automatic, pedal-operated clamp | Steel frame, cast clamp jaws | 10-24 inch wheel rim diameter |
| Garage 3D Wheel Alignment Machine | Automatic camera/sensor-based angle measurement | Steel alignment lift/turntables, sensor clamps or targets | Measures camber, caster and toe on 2/4-wheel vehicles |
| Garage Rim Straightener | Manual hydraulic hand-pump operation | Heavy steel frame, hardened pressing rollers | 13-24 inch alloy/steel wheel rims |
| Garage Tyre Inflator | Automatic/manual pressure set with cut-off | Steel/ABS housing, reinforced hose, clip-on air chuck | 0-10 bar (0-150 psi) fill pressure |
U mag ook nodig hê
Verwante produkte

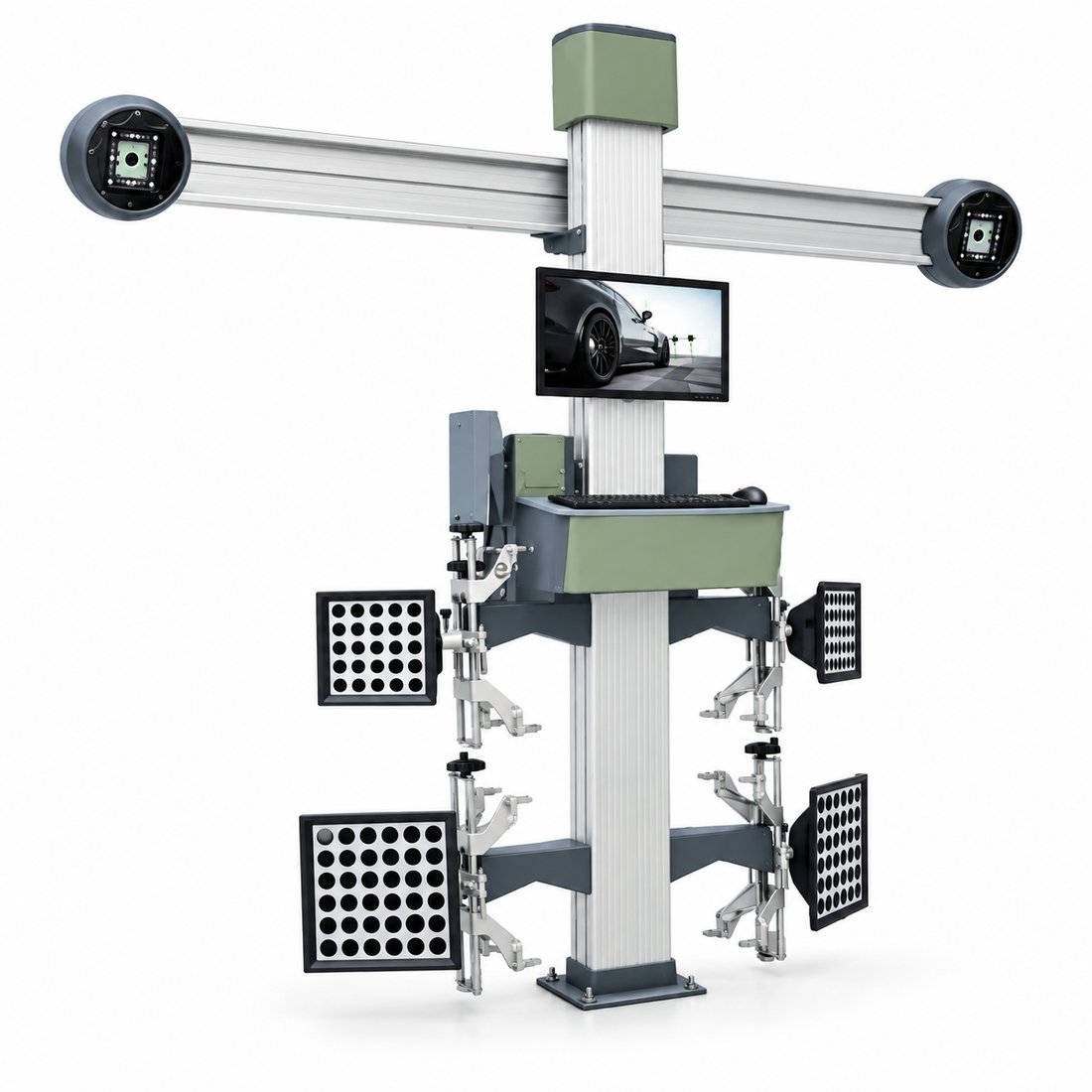

Garage 3D Wheel Alignment Machine
Bekyk besonderhede →

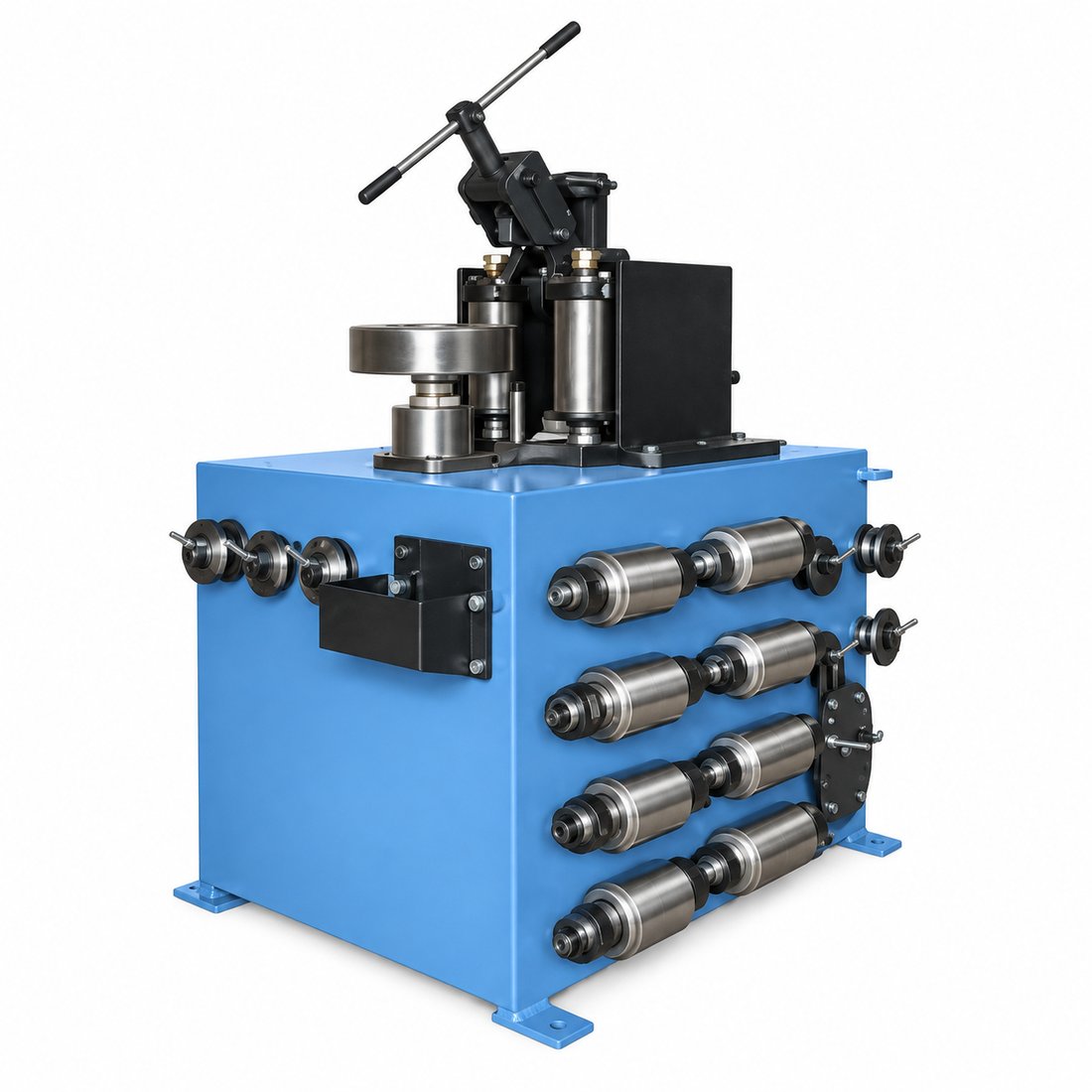

Garage Rim Straightener
Bekyk besonderhede →

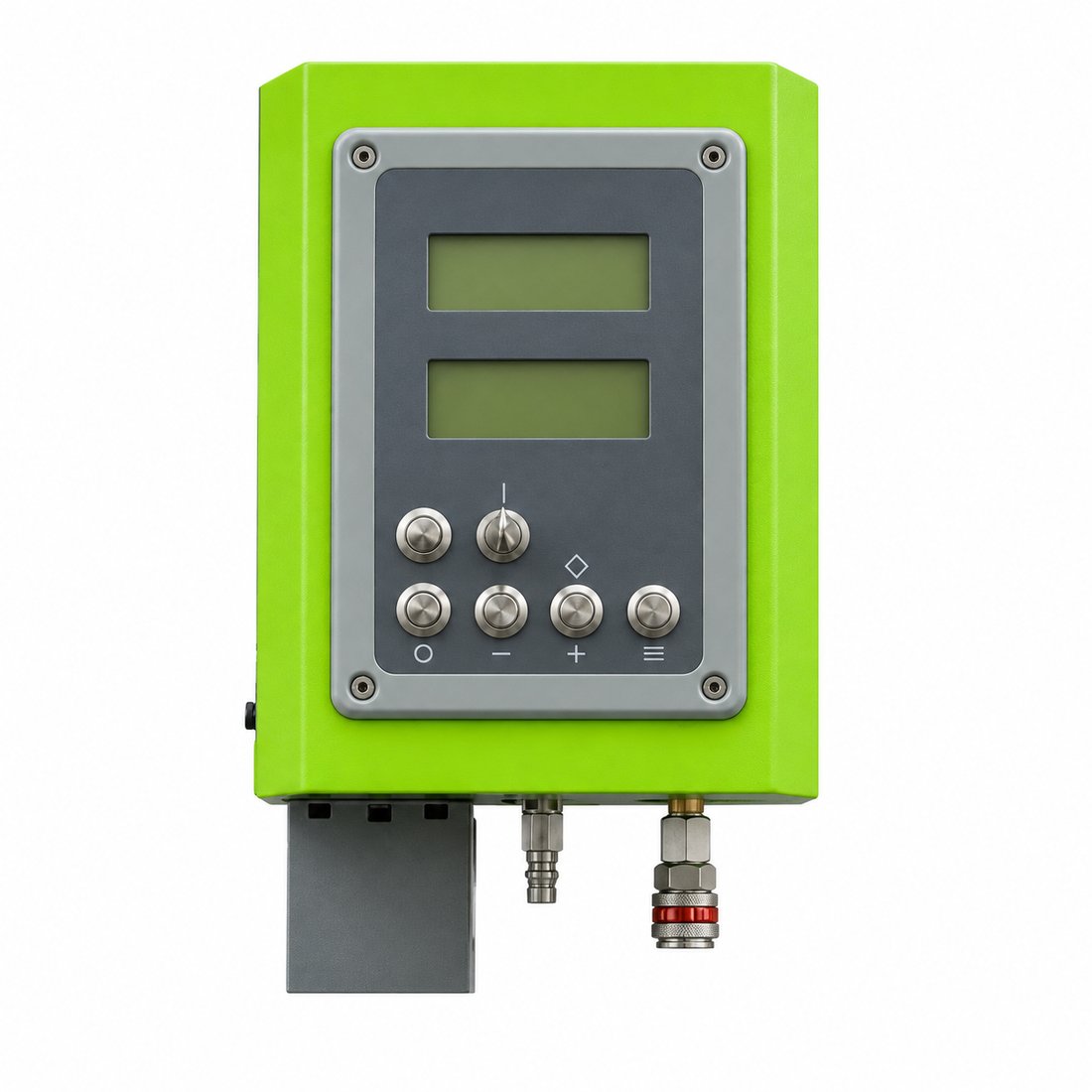

Garage Tyre Inflator
Bekyk besonderhede →

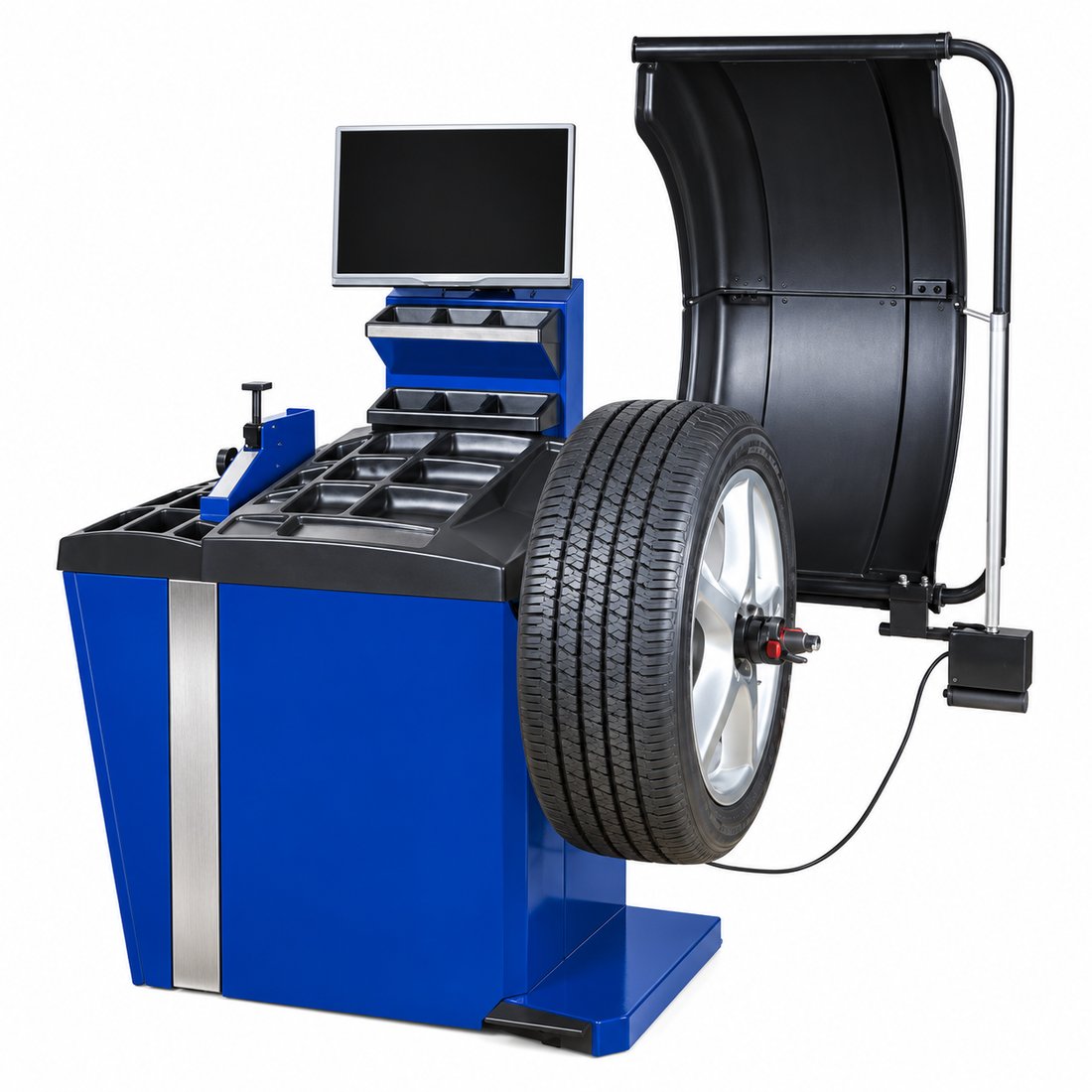

Garage Videographic Wheel Balancer
Bekyk besonderhede →Koperkwessies
Vrae oor die Garage Tyre Changer
Ja — kapasiteit, kragspesifikasie en bykomstighede vir die Garage Tyre Changer kan gewoonlik volgens u behoefte gekonfigureer word. Deel u teikenuitset en bestemmingsland wanneer u navraag doen.
Uitvoerbestellings word verskaf met seewaardige verpakking, versendingsdokumentasie en, waar van toepassing, 'n bedieningshandleiding. Installasie- en na-verkoopsvoorwaardes word tydens bestelling bevestig.
Uitvoerdekking vir hierdie kategorie strek na 67+ lande in Afrika, Asië, die Midde-Ooste en Latyns-Amerika; deel u bestemmingshawe vir 'n versendingsberaming.
Yes. For tender and bulk institutional orders of the Garage Tyre Changer, we quote against the exact technical specification in your tender document and align production and dispatch with your award timeline.
